13 min read
A procurement manager for a US accessories brand once told me about a disaster that could have been avoided. They had ordered 20,000 metal cardholders from an overseas supplier who insisted on using progressive stamping. The design looked simple on paper—a flat plate with a bend. But the card track tolerances were too tight for a stamped part to hold consistently. The result: 20,000 units that either pinched cards or let them slide out freely. The entire batch was scrapped. The difference between a wallet that feels premium and one that feels cheap often comes down to the manufacturing process.
This guide breaks down the technical differences, cost structures, and application fit for CNC machining and metal stamping specifically for wallets, cardholders, and key organizers. You will leave with a clear framework to align your product specifications with the right manufacturing process.
Direct answer: CNC machining is a subtractive manufacturing process where a solid block of metal is carved into a finished part using computer-controlled rotating cutting tools. For wallet production, it delivers tolerances of ±0.01mm to ±0.05mm and enables complex features like internal threads, precision holes, and tight mating surfaces that stamping cannot achieve.
CNC (Computer Numerical Control) machining removes material from a solid block—typically aluminum, titanium, brass, or stainless steel—to create the final shape. The process starts with a CAD file that a CAM programmer converts into tool paths. A machine then follows those paths, spinning cutting tools at high speeds to remove material layer by layer.
In wallet manufacturing, CNC is used for solid metal wallets, RFID blocking shells, and rigid frames for hybrid leather-metal designs. The key advantage is that the process is driven entirely by software. No hard tooling is required, so design changes are made in the code, not in expensive steel dies.
Key terminology buyers should know:
Spindle speed: RPM of the cutting tool, typically 10,000–30,000 RPM for aluminum
Feed rate: How fast the tool moves through the material
Tool path: The programmed route the cutting tool follows
Tolerance: The allowable deviation from the specified dimension
A folding metal wallet relies on precisely placed holes for hinge pins, key rings, and lanyard attachments. If a hole is misaligned by even 0.2mm, the pivot action becomes stiff or the pin wears unevenly over time.
CNC machining can hold hole placement to ±0.005 inches (0.13mm) or better. This consistency matters because a wallet is an object people handle dozens of times per day. Friction in the mechanism is immediately noticeable. Stamping, by contrast, relies on the die aligning with the sheet metal—and while modern progressive dies are accurate, they cannot match the positional precision of a CNC spindle moving independently in three axes.
Many premium metal wallets use screws to hold the shell together. This allows disassembly for battery replacement in smart wallets or access to internal components. CNC machining can cut threads directly into the solid material.
Threads cut into solid material are structurally stronger than threads formed in thin stamped sheet metal. A tapped hole in a 3mm aluminum plate has substantial thread engagement. A stamped part's thread is essentially a folded edge—it strips easily if over-torqued.
For wallets with replaceable parts or those that need to survive years of use, this is a meaningful durability factor.
Where two halves of a metal wallet meet, flatness and parallelism determine whether the product feels solid or rattles. CNC machining excels at creating precise mating surfaces because the part is held rigidly while the cutter removes material. The resulting surface is flat and consistent across the entire face.
Industry standard ISO 2768-m covers general tolerances for machined parts. CNC routinely achieves finer standards for specific features. For hybrid wallets with a metal frame and leather insert, the frame's internal pocket dimensions are critical. A pocket that is 0.1mm too small will not accept the leather; one that is 0.1mm too large will let it shift during use.
CNC requires no hard tooling. If you want to change a logo placement, adjust a radius, or offer a different colorway, the change happens in the CAD file. Production can start within days of finalizing the design.
This makes CNC the default choice for:
Pilot runs and market testing
Limited edition designs
Brand customization (engraving logos, serial numbers)
Multi-SKU product lines under 10,000 units per design
The trade-off is cycle time. Each CNC part takes minutes to machine, whereas a stamping press spits out parts in seconds. For volumes above 50,000 units, CNC's per-unit cost becomes harder to justify.

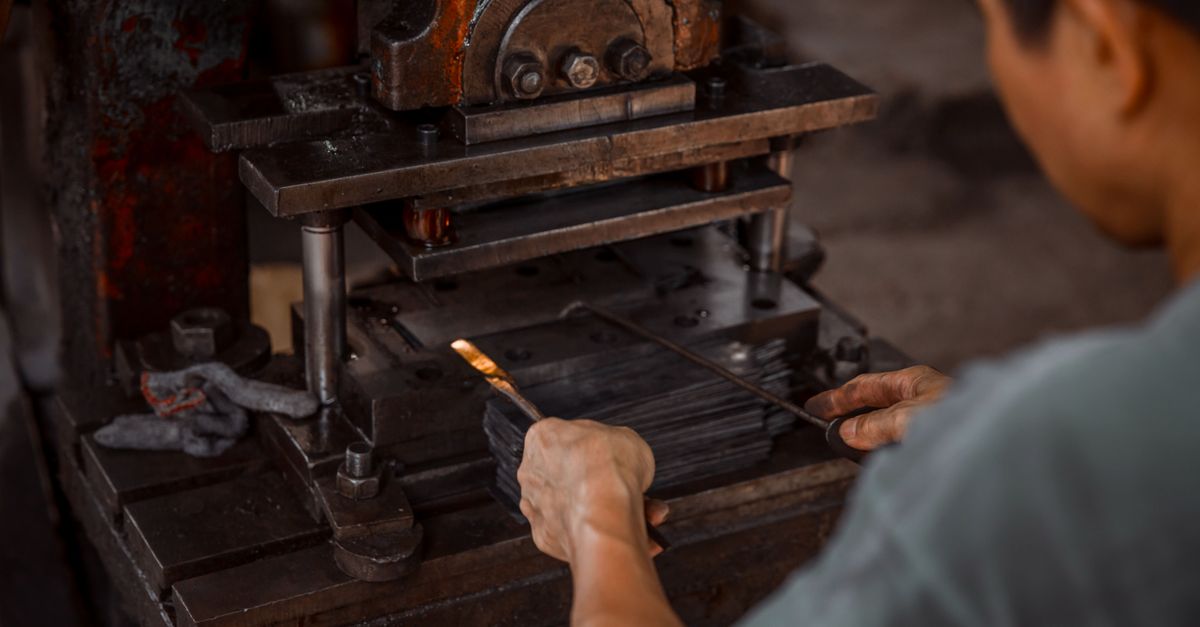

Direct answer: Metal stamping is a forming process where a flat sheet metal coil is fed into a press with a custom die that cuts and bends the metal into shape. It offers extremely low per-unit costs at high volumes but requires expensive tooling and is limited to 2D profiles with bends.
Metal stamping uses a custom-built die—a precision tool steel component—to cut, punch, bend, and form a flat sheet metal strip. The process includes:
Blanking: Cutting the outer shape from the sheet
Punching: Creating holes in the blank
Bending: Forming angles and curves
Coining: Compressing the metal to create finer details or thickness changes
In wallets, stamping is used for internal RFID shielding plates, thin metal money clips, and outer shells for slim cardholders. The process is fast—a progressive die can produce 50–100 parts per minute.
The die is the core cost driver. A simple blanking die might cost $5,000. A complex progressive die—one that performs multiple operations in a single pass—can cost $50,000 or more. The die must be designed, machined, heat-treated, and tested before production begins.
The financial reality is that tooling costs must be amortized across the production volume. At 5,000 units, a $20,000 die adds $4.00 per unit in tooling cost alone. At 100,000 units, the same die adds only $0.20 per unit. This is why stamping only becomes economical at scale.
Stamping produces scrap—the skeleton of sheet metal left after blanking. While manufacturers recycle this scrap, it still represents wasted material. CNC machining also produces chips, but a solid block can be oriented to maximize material usage.
A lesser-known issue is grain structure. Rolled sheet metal has a grain direction. Bending along the grain can cause micro-fractures on the outside of the bend. CNC machining cuts through the grain randomly, which often results in stronger edges for thin wallet frames. This is one reason why thin stamped parts can crack at the bend radius while machined parts of the same thickness do not.
Stamping is also limited to sheet thicknesses, typically 0.5mm to 3mm. CNC can machine solid blocks up to any practical thickness, allowing for more rigid, substantial-feeling wallets.
Stamped parts have burrs on the cut edges—microscopic raised metal that must be removed through secondary operations like tumbling or vibratory finishing. While deburring is standard practice, it adds cost and time.
Stamping can also leave "die lines"—slight surface marks where the die contacts the metal. These are usually acceptable for industrial applications but can be visible on a premium consumer product. CNC-machined parts have a uniform surface texture from the cutting tool, which anodizes and finishes more consistently.
Direct answer: CNC machining wins for low-to-mid volumes, complex geometries, and premium finishes. Metal stamping wins for high volumes of simple, flat designs. The crossover point is typically around 10,000–50,000 units, depending on part complexity and material.
| Factor | CNC Machining | Metal Stamping |
|---|---|---|
| Upfront tooling cost | Low (no dies required) | High ($5,000–$50,000+) |
| Per-unit cost | Higher (minutes per part) | Lower (seconds per part) |
| Break-even volume | Best below 10,000 units | Best above 50,000 units |
| Design change cost | Low (software edit) | High (new die required) |
| Material options | Solid bars (aluminum, titanium, brass, steel) | Coils (same materials, limited by formability) |
| Wall thickness range | 0.5mm to solid block | 0.5mm to 3mm typical |
| Tolerance capability | ±0.01mm to ±0.05mm | ±0.1mm typical |
| Surface finish | Uniform machined texture | Burrs and die lines possible |
| Threads | Cut directly into material | Not practical in thin sheet |
CNC machining can start production within 1–2 weeks of receiving a finalized design. Programming takes 1–3 days; machining runs continuously once set up. For prototyping, parts can be ready in days.
Stamping requires 4–6 weeks for die fabrication alone. The die must be designed, machined, heat-treated, and tested. Once the die is approved, production is extremely fast—but you cannot start until the die exists.
For brands entering the market quickly or testing new designs, CNC's agility is a decisive advantage.
CNC handles 3D geometries, internal threads, recessed logos, and multi-level surfaces without difficulty. A wallet with a curved profile, a recessed card track, and a threaded screw boss is a straightforward CNC job.
Stamping is limited to 2D profiles with bends—what the industry calls "2.5D." You can create a flat plate with a 90-degree bend, but you cannot create an internal threaded boss or a multi-level surface. Complex features require moving to CNC or using expensive multi-slide stamping presses.
CNC works with solid bars of aluminum, brass, copper, titanium, and stainless steel. The material's hardness is less of a concern because cutting tools can be selected to match.
Stamping works with coils of the same materials, but formability is a constraint. Titanium, for example, is difficult to bend without cracking at tight radii. Softer metals like brass and aluminum are easier to stamp, but they may not offer the premium feel of titanium.
Direct answer: Calculate your total cost of ownership (tooling + per-unit cost × volume), assess your design complexity, and always prototype via CNC before committing to stamping tooling. If your retail price point exceeds $50, CNC is likely the right choice.
Run a simple break-even analysis:
CNC total cost: Programming cost + (per-unit machining cost × volume)
Stamping total cost: Die cost + (per-unit stamping cost × volume)
At low volumes, CNC's lack of tooling cost makes it dramatically cheaper. At high volumes, stamping's low per-unit cost wins. The crossover point varies, but for wallet-sized parts, it typically falls between 5,000 and 50,000 units.
Ask these questions:
Does the design require internal screw threads?
Are the walls thicker than 2mm?
Do you need a matte, brushed, or anodized finish?
Are there tight tolerances on card tracks or hinge points?
Is the geometry curved or multi-level?
If you answer yes to any of these, CNC is the path. If the design is flat, simple, and you anticipate volumes above 50,000, stamping may be viable.
Always prototype via CNC before committing to stamping tooling. A CNC prototype validates ergonomics, fit, and finish for a few hundred dollars. The same validation after investing $20,000 in a die is an expensive lesson if the design needs changes.
Direct answer: ISO 2768 covers general tolerances for CNC-machined parts, while DIN 6935 addresses flatness for stamped parts. Buyers should specify tolerance requirements in their RFQ to avoid mismatched expectations.
ISO 2768: General geometric tolerances for machined parts. The "m" (medium) class is typical for consumer products.
DIN 6935: Standard for flatness of stamped parts, particularly relevant for thin metal components.
Specify which standard applies to which features. A wallet's external dimensions might tolerate ±0.2mm, but the card track width should be held to ±0.05mm.
Anodizing (MIL-A-8625): Common for aluminum wallets. CNC-machined surfaces anodize with more consistent color match because the surface is uniform.
Powder coating: Common for stamped steel parts, as it hides die marks and surface inconsistencies.
A CNC-machined aluminum wallet anodized in a specific Pantone color will match across production runs. A stamped part may show slight color variation due to surface texture differences.
Understanding the technical differences is the first step. The second is finding a partner who can execute both—or advise you on which is right for your specific design.
As a manufacturer with 13+ years of experience in metal and hybrid wallets, we see the confusion buyers face when comparing these two processes. The most common mistake is choosing a process before fully understanding the design's tolerance requirements. We bridge the gap by offering in-house CNC machining and access to high-volume stamping partners, ensuring you get the right process for your volume.
Our in-house CNC facility handles the precision elements—threads, tight tolerance features, and complex geometries—that are critical for premium metal wallets. This capability supports our OEM and ODM services for brands requiring customized designs. When a design is simple and volume justifies stamping, we can transition production to that process without compromising quality.
We adhere to strict QC checkpoints at every stage: incoming material inspection, in-process dimension checks, and final functional testing. Every batch is verified against the tolerance standards discussed above.
If you are evaluating these processes for your next wallet line, our engineering team can provide a DFM (Design for Manufacturing) review to help you decide. This review identifies potential manufacturing issues before you commit to tooling, saving both time and money.
Is stamping cheaper than milling?
Yes, for high volumes (100k+ units), stamping is cheaper per unit. However, the initial die cost is substantial. For low volumes under 10,000 units, CNC milling is significantly cheaper overall because there is no tooling cost. A $20,000 die amortized across 5,000 units adds $4.00 per unit—more than the entire machining cost for many wallet components.
Can a CNC machine engrave metal?
Yes. CNC machines are commonly used for engraving logos, serial numbers, and textures onto metal wallets. This is a key advantage over stamping, where engraving requires a separate chemical etching or laser marking process. CNC engraving is precise, repeatable, and can be changed between production runs at no cost.
What is the best metal to use for metal wallets?
Softer metals like brass and aluminum are easier to form and stamp. Harder metals like titanium require CNC machining to achieve precise features without cracking. For a premium feel with reasonable cost, 6061-T6 aluminum is the industry standard. For maximum durability, grade 5 titanium offers superior strength-to-weight ratio.
Is machinist a dying trade?
No. While basic machining is automated, demand for skilled CNC machinists and programmers is growing. Complex parts like metal wallets require skilled setup and toolpath optimization that cannot be fully automated. The US Bureau of Labor Statistics projects steady employment for machinists through 2032, with CNC programmers in particularly high demand.
How long does tooling take for a stamped metal wallet?
Typically 4–6 weeks for a progressive die, plus 1–2 weeks for die tryout and approval. CNC machining has no tooling lead time, only programming time of 1–3 days. For a brand launching a new product, the difference between a 2-week and a 6-week lead time can determine whether you hit a seasonal market window.
Can I combine CNC and stamping in one wallet design?
Yes. A common hybrid approach is using stamped metal for the internal RFID shield (low cost, high volume) and CNC machining for the outer frame (high precision and aesthetic). This balances cost and quality—the RFID shield is hidden, so surface finish matters less, while the outer frame is the visible, tactile part that needs premium quality.
Choose CNC machining if:
Your total production volume is under 10,000 units per design
Your design includes threads, tight tolerances, or complex 3D geometry
You need fast turnaround for market entry or seasonal launches
Your retail price point is above $50, justifying premium manufacturing
You plan to offer multiple colorways or limited editions
You need consistent anodized finishes across production runs
Choose metal stamping if:
Your production volume exceeds 50,000 units per design
The design is flat with simple bends—no internal threads or complex features
You have the capital to invest in tooling and the time to wait for die fabrication
Your target cost per unit must be minimized at scale
The product is a simple money clip or flat cardholder
Avoid stamping if:
Your card track tolerances are tighter than ±0.1mm
The design has internal screw threads or requires disassembly
You need to iterate on the design after the first production run
Your volumes are uncertain—you cannot afford to scrap a $30,000 die
ISO 2768-1:1989 General tolerances — https://www.iso.org/standard/12081.html
DIN 6935:2011-04 Flanging of steel — https://www.beuth.de/en/standard/din-6935/135067045
US Bureau of Labor Statistics, Machinists and Tool and Die Makers — https://www.bls.gov/ooh/production/machinists-and-tool-and-die-makers.htm
MIL-A-8625F Anodic Coatings for Aluminum and Aluminum Alloys — https://quicksearch.dla.mil/qsDocDetails.aspx?ident_number=36058
---
