9 min read
A purchasing manager sits with three supplier quotes for RFID blocking fabric. The prices vary by nearly 40%, yet the technical datasheets look identical. The difference is not in the marketing language — it is in the material weave, the plating quality, and the attenuation test method. This guide explains what to look for before you commit a five-figure budget.
RFID blocking materials fall into four categories: metal alloy plates, conductive fabrics, adhesive films, and composite hybrids. Each serves a different product application. Buyers should select based on flexibility requirements, thickness constraints, and the target RFID frequency.
RFID systems operate at three main frequencies: LF (125 kHz), HF (13.56 MHz), and UHF (860–960 MHz). Blocking materials work on the Faraday cage principle — a conductive barrier that reflects or absorbs electromagnetic waves, preventing the RFID chip from receiving enough energy to transmit data.
Signal attenuation is measured in decibels (dB). Industry practice typically references a minimum of 30 dB attenuation for HF frequencies, which corresponds to roughly 99.9% signal reduction. Materials claiming "100% blocking" should be treated with suspicion — no passive material achieves complete attenuation across all frequencies.
Metal Alloy Plates (Aluminum, Copper, Brass)
These are rigid inserts used in wallets and cardholders. Key specifications include thickness (0.2 mm to 1.0 mm), corrosion resistance, and weight. Aluminum is the most common choice because it offers good conductivity at approximately 2.7 g/cm³ — roughly one-third the weight of copper.

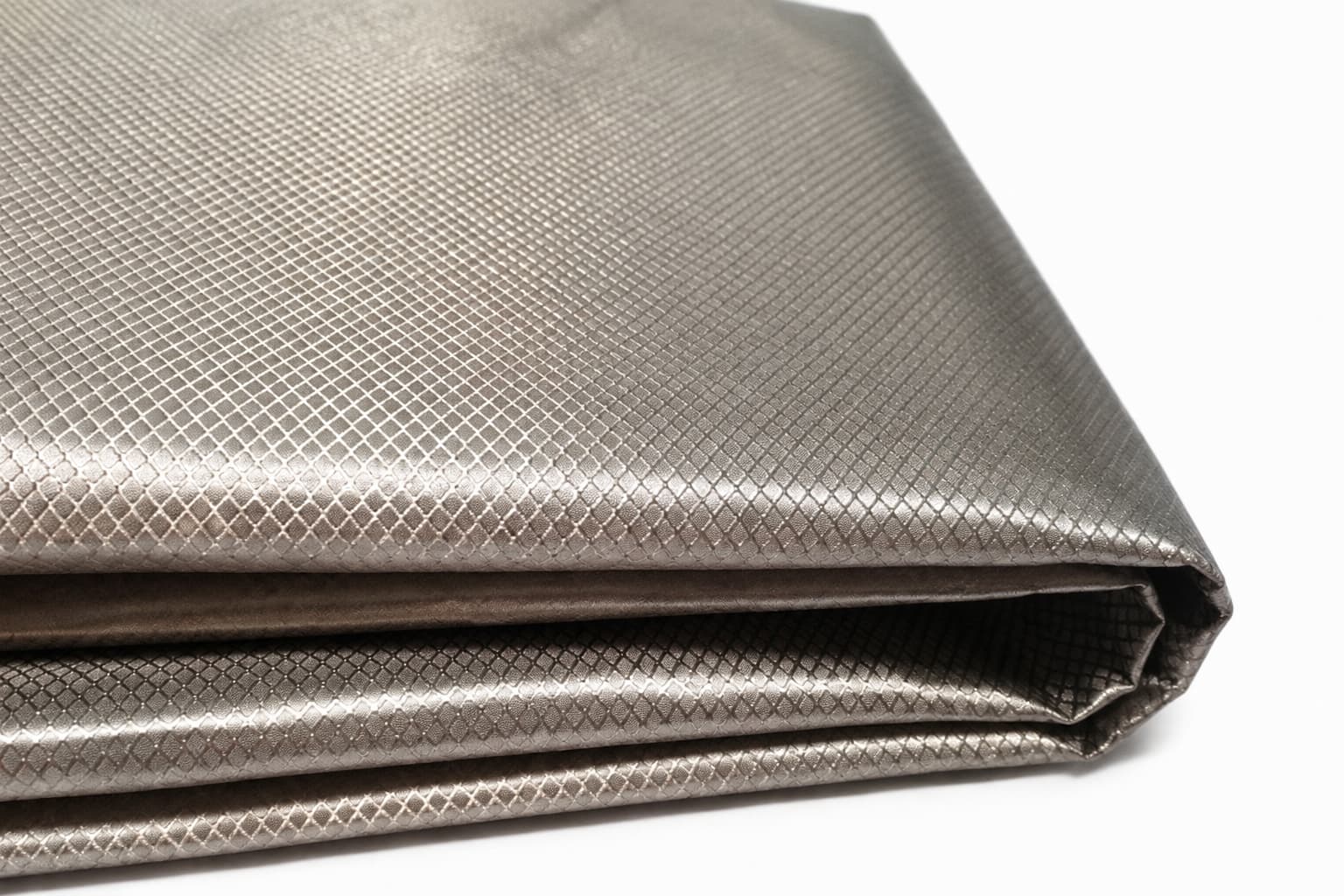

RFID Blocking Fabric (Nickel-Copper Ripstop, Silver-Coated Nylon)
Flexible fabrics are ideal for sewing into leather goods or apparel. Critical parameters include fabric weight (typically 60–100 g/m²) and surface resistivity (measured in ohms per square, Ω/sq). Lower resistivity indicates better conductivity and therefore better shielding performance.
RFID Blocking Film and Foil
Adhesive-backed films line interiors or produce laminated sheets. They are commonly supplied in rolls with a thickness under 0.1 mm. Key specifications are adhesion strength (measured in N/25mm), thermal stability, and tear resistance.
Composite Materials
Carbon fiber and metal mesh hybrids combine aesthetics with durability. These are less common in bulk purchasing due to higher costs, but they suit premium product lines where appearance matters as much as performance.
Wallets: Rigid metal inserts for card slots, or full fabric linings for flexibility
Phone Cases: Thin metallic films under 0.1 mm to maintain slim profiles
Passport Holders and Bags: Flexible fabric that can be stitched and edge-bound
Key Organizers: CNC-machined metal plates that double as structural components
The most important quality indicator is attenuation performance measured in decibels across the frequencies you target. Surface resistivity, material thickness consistency, and adhesion durability follow closely behind.
When evaluating materials, request these specific data points:
Surface resistivity (Ω/sq): Lower values indicate better conductivity
Attenuation (dB) at each frequency band: Test at 13.56 MHz for HF applications
Thickness tolerance: Typically ±10% for fabrics, ±0.05 mm for metal plates
Tear strength and abrasion resistance: Critical for products that undergo daily handling
Manufacturers test shielding effectiveness using a shielded box or waveguide connected to a spectrum analyzer. The test measures signal loss through the material at specific frequencies. A material that achieves 40 dB attenuation at 13.56 MHz blocks 99.99% of the signal — a solid benchmark for wallet applications.
Ask suppliers whether they test per ISO 18184 or an equivalent standard. Independent lab testing (SGS, TÜV) carries more weight than in-house measurements alone.
A reliable supplier provides complete technical documentation, offers samples for independent testing, and maintains consistent production quality. Buyers should verify claims through third-party testing rather than accepting datasheets at face value.
Before committing to a supplier, verify:
In-house testing equipment: Spectrum analyzers and shielding effectiveness testers should be present on-site
Production capacity: Can the factory handle your volume without extending lead times?
Batch traceability: Can they track raw material lots through production?
Sample retention policies: Do they keep production samples for quality disputes?
Third-party inspection options: Are they open to SGS or TÜV audits?
Unrealistic attenuation claims without supporting test data
Vague responses about raw material sourcing
Reluctance to provide material data sheets
Inconsistent lead time estimates
No clear quality control process documentation
What is the exact material composition and plating thickness?
Can you provide test reports from an independent laboratory?
What is your defect rate on bulk orders?
How do you handle quality disputes?
What is your policy for non-conforming batches?
RFID blocking materials should comply with environmental directives and performance standards. The most relevant are RoHS, REACH, and ISO 18184.
| Standard | Scope | Why It Matters |
|---|---|---|
| RoHS | Restricts hazardous substances | Required for EU market access |
| REACH | Chemical safety regulation | Mandatory for EU imports |
| ISO 18184 | Textile shielding effectiveness | Provides a standardized test method |
| Prop 65 | California chemical disclosure | Required for US California sales |
Environmental compliance is not optional for most markets. Buyers should request certificates of compliance with every shipment. Note that compliance documentation adds cost — typically 2–5% of material price — but the risk of customs rejection far outweighs the premium.
MOQs vary by material type. Fabric rolls typically start at 500 linear meters, while rigid metal plates begin at 1,000 pieces. Custom shapes require higher MOQs due to tooling costs.
A well-structured RFQ saves both buyer and supplier time. Include these elements:
Technical Specification Sheet (TSS): Material type, dimensions, thickness, attenuation target
Performance requirements: Attenuation ≥40 dB at 13.56 MHz, operating temperature range
Environmental requirements: RoHS, REACH compliance
Quantity and forecast: Annual volume with monthly breakdown
Packaging and delivery: Preferred Incoterms, destination port
Timeline: Target production start and delivery dates
Compare quotes on a per-square-meter or per-piece basis — not total price. Ask about tiered pricing structures before committing to a volume. Suppliers often offer better rates at 10,000 units versus 5,000, but the discount curve flattens after certain thresholds.
Freight terms matter. FOB (Free On Board) pricing shifts shipping responsibility to the buyer, while CIF (Cost, Insurance, Freight) bundles these costs. For first-time orders, CIF provides price certainty; experienced buyers often prefer FOB to control logistics costs directly.
Material selection impacts product design more than most buyers anticipate. Rigid inserts require precise tolerances for card slots and closures. Flexible fabrics allow for full-lining integration but may not provide sufficient rigidity for structural components.
Rigid metal plates can be CNC-machined into custom shapes with cutouts for magnetic closures or card access. Flexible fabrics are better suited for products that bend or fold. Hybrid approaches — combining metal plates with fabric layers — offer dual-frequency protection but add assembly complexity.
Thickness constraints create trade-offs. A full wallet with shielding typically measures 5–8 mm thick. Reducing this to under 5 mm requires thinner materials, which may compromise attenuation performance. Buyers should specify their maximum product thickness before selecting materials.
Quality evaluation for bulk orders requires verifying that production batches match approved samples. This means testing attenuation, physical dimensions, and material consistency.
Attenuation consistency: Test multiple samples from different production batches
Dimensional accuracy: Verify thickness and cut dimensions meet specifications
Surface finish: Check for scratches, discoloration, or plating defects
Adhesion quality: For film-backed materials, test peel strength
Not all RFID blocking materials perform identically. Nickel-copper fabrics offer excellent conductivity but can oxidize over time. Silver-coated nylon provides superior performance at a higher cost. Aluminum plates are cost-effective but provide less attenuation than copper at the same thickness. Buyers should match material to the product's price point and expected lifespan.
As a manufacturer with over 13 years of experience producing metal and leather goods, we approach RFID blocking materials with a focus on consistency and traceability. Our process aligns with the standards discussed above:
Material Sourcing & Testing: We source aluminum, copper, and nickel-copper fabrics from certified mills. Every batch is tested for surface resistivity and attenuation using in-house shielding effectiveness equipment, targeting 30–40 dB attenuation at HF frequencies.
In-House CNC Machining: Our 300,000+ monthly production capacity includes in-house CNC machining for rigid metal inserts. This allows tolerances of ±0.1 mm — critical when integrating shielding into complex wallet or key organizer designs.
OEM/ODM Flexibility: We provide custom die-cutting, lamination, and edge-sealing. Whether you need a thin film for a phone case or a rigid plate for a premium cardholder, we adapt our material lineup to your technical specification sheet.
Transparent Lead Times: For bulk material orders, we provide a confirmed production schedule within 48 hours of quote acceptance. Standard lead times are 20–30 days for 5,000–20,000 units, with air freight options for urgent launches.
We are happy to provide material samples and test reports for your evaluation before you commit to a bulk order.
To receive an accurate quote quickly, prepare this information:
Material type: Aluminum plate, copper fabric, adhesive film, or composite
Dimensions and thickness: e.g., 90 mm × 50 mm × 0.3 mm
Target quantity: e.g., 10,000 pieces per month
Performance requirements: Attenuation ≥40 dB at 13.56 MHz
Customization needs: Die-cut shapes, adhesive backing, surface finish
After you send your inquiry, our engineering team reviews your spec sheet and sends a preliminary quote with material recommendations within 24 hours. Technical datasheets and sample availability follow within 48 hours. Physical samples ship within 5–7 days — sample fees apply but are refundable with bulk orders.
For urgent projects, mention "RFQ – Urgent" in your subject line to prioritize your request.
What is the minimum order quantity for RFID blocking materials?
For rigid metal plates, the MOQ is typically 1,000 pieces. For fabric rolls, the MOQ is 500 linear meters. Custom shapes may require higher MOQs due to tooling costs.
Can I get samples before committing to a bulk order?
Yes. Material samples — A4-size fabric swatches or 3–5 rigid inserts — are available for a nominal fee, fully refunded upon order confirmation.
How is shielding effectiveness tested?
Manufacturers use a shielded box test with a spectrum analyzer, measuring attenuation in dB across LF, HF, and UHF bands. Test reports are available upon request.
Do materials comply with international safety standards?
Our materials meet RoHS and REACH requirements. Certificates of compliance accompany shipments.
What are typical lead times for 10,000 units?
Production takes 20–25 days after raw material confirmation. Including sourcing and QC, total lead time is 25–35 days. Air freight reduces transit to 5–7 days.
Choose A if: You need maximum flexibility for sewing into leather goods — fabric-based shielding suits your production line.
Choose B if: Your product requires structural rigidity — CNC-machined metal plates provide both shielding and mechanical support.
Ready to start your bulk procurement? Send your spec sheet today and receive a detailed quote within 24 hours.
ISO 18184: Textiles — Determination of antiviral activity of textile products. International Organization for Standardization. https://www.iso.org/standard/72788.html
European Chemicals Agency. REACH Regulation (EC) No 1907/2006. https://echa.europa.eu/regulations/reach/understanding-reach
RoHS Directive 2011/65/EU. European Commission. https://environment.ec.europa.eu/topics/waste-and-recycling/rohs-directive_en
California Office of Environmental Health Hazard Assessment. Proposition 65. https://oehha.ca.gov/proposition-65
