A buyer in Shenzhen once placed an order for 20,000 aluminum cardholders based on a 3D render alone. The factory delivered, but the cards didn't fit. The slots were machined to the wrong depth because the buyer never requested a physical prototype. That shipment cost more than the samples would have.

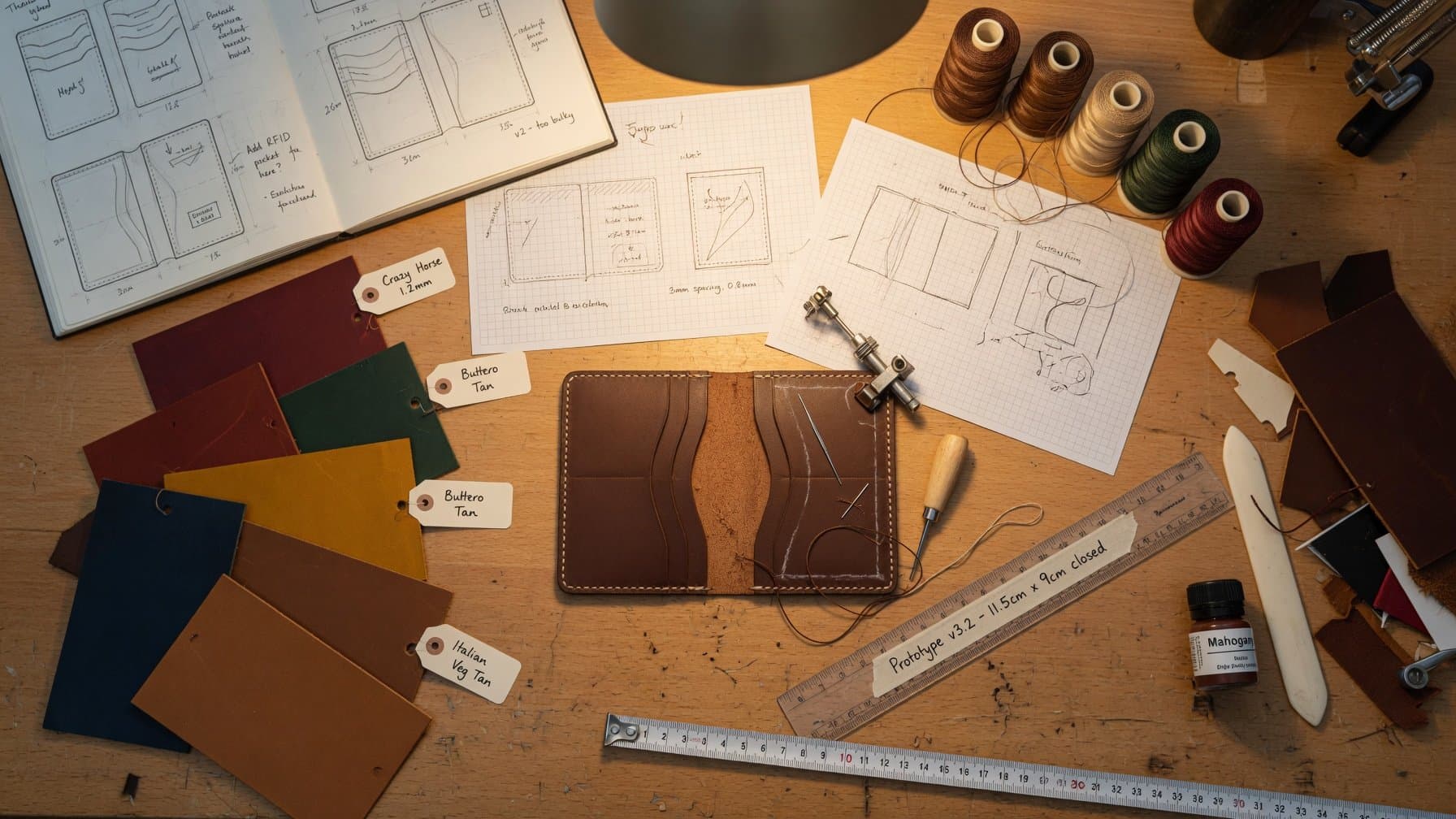

A wallet prototype is not a concept sketch. It is not a 3D render on a screen. It is a physical, testable representation of the final product—built to verify fit, function, materials, and manufacturing feasibility before any mass production commitment. For B2B buyers, understanding what belongs inside that prototype package is the difference between a smooth production run and a costly rework loop.
This guide breaks down every element a complete wallet prototype should include: structural components, hardware, materials, testing protocols, and documentation. It also provides a framework for evaluating suppliers based on their prototype capabilities.
A complete wallet prototype includes exterior panels, interior storage architecture, and a closure mechanism—each dimensioned to exact specifications so the sample behaves identically to the final production unit.
The structural anatomy of a wallet prototype varies by style, but the core components remain consistent. Understanding these layers helps buyers specify precisely what they need.
Every wallet design starts with its outer panels. A bifold typically requires two main exterior panels plus an interior spine. A trifold adds a third panel. A minimalist cardholder may use a single folded piece or two machined plates.
Material thickness directly affects feel and durability:
Metal wallets: Aluminum 6061-T6 typically runs 1.0mm–1.5mm thickness. Below 1.0mm, the material flexes and may fatigue at stress points. Above 1.5mm, the wallet becomes bulky for pocket carry.
Leather wallets: Full-grain leather panels range 2.0mm–3.0mm. Thinner leather lacks structural integrity; thicker leather becomes difficult to stitch and fold.
Hybrid designs: Metal frames paired with leather or elastic inserts require careful tolerance matching at the joint points.
A professional prototype includes the outer shell, inner lining, and any reinforcement layers—not just the visible exterior.
The interior layout determines how many cards, cash, or coins the wallet holds. This is where specification detail matters most.
Standard CR80 card dimensions are 85.6mm × 54mm × 0.76mm. Card slots must accommodate these dimensions plus clearance for easy insertion and removal. Typical clearance runs 0.3mm–0.5mm on each side.
Stitched slots (leather): Spacing between slots depends on leather thickness and stitch allowance. Each slot adds roughly 2.5mm–3.0mm of height.
CNC-milled slots (metal): Machined channels require precise depth control. A slot milled too shallow won't accept a card; too deep, and the card rattles.
Hidden compartments: Additional layers of material or machined recesses for discreet storage. These add manufacturing steps and cost.
The prototype must include every slot, pocket, and compartment specified in the final design. Omitting one "minor" pocket in the sample often leads to production surprises.
How the wallet stays closed—or whether it closes at all—defines part of the user experience. Common options include:
| Closure Type | Application | Prototype Considerations |
|---|---|---|
| Magnetic | Slim metal or hybrid wallets | Magnet strength, interference with RFID blocking, thickness added |
| Snap button | Leather bifolds and coin pockets | Placement accuracy, material compatibility, closure force |
| Elastic band | Minimalist cardholders | Tension, stretch recovery, band replacement feasibility |
| Friction-fit | Metal cardholders | Machining tolerance, card retention without damage |
| No closure | Open-top cardholders | Card retention angle, gravity resistance |
The closure mechanism affects overall thickness and manufacturing complexity. A magnetic closure adds 1.0mm–1.5mm; a snap button requires precise alignment of two mating parts.
Hardware components—fasteners, RFID shielding, and clips—are often the most overlooked elements in a wallet prototype, yet they determine long-term durability and functionality.
Buyers frequently focus on materials and appearance while missing the mechanical details that make or break a wallet's performance.
Metal wallets assembled from multiple panels require fasteners. Leather wallets require rivets or stitching reinforcement at stress points. Flip-style wallets require pivots or hinges.
Material selection for hardware matters:
Stainless steel: Corrosion-resistant, higher cost, harder to machine. Recommended for marine or high-humidity environments.
Brass: Softer, easier to machine, develops a patina over time. Common in premium leather goods.
Zinc alloy: Cost-effective for die-cast components but less durable under repeated stress.
A prototype must use the same fastener type and material specified for production. A sample assembled with temporary screws instead of permanent rivets won't reveal fit issues that appear during final assembly.
RFID blocking is a functional requirement, not a marketing feature. The shielding must physically block radio frequency signals across specific bands.
Two frequency ranges matter for payment and access cards:
13.56 MHz (HF/NFC): Used by contactless payment cards, transit passes, and smartphone NFC.
125 kHz (LF): Used by older access control systems and some ID cards.
RFID shielding in a wallet prototype typically takes one of three forms:
Separate foil layer: A thin metallic sheet laminated between outer and inner materials.
Woven metal fabric: Flexible, commonly used in leather wallets.
Metallic composite plate: Rigid, used in metal wallets as part of the structure itself.
The prototype should include the exact shielding configuration planned for production. Testing confirms whether the shield attenuates signals to the required level—typically, a blocked card should not be readable when the wallet is closed.
Money clips fall into two categories:
Folded steel clips: Formed from spring steel, tension provides grip. The prototype must verify clip tension—too weak and cash slips; too strong and the wallet becomes difficult to use.
Spring-loaded clips: Mechanical assemblies with moving parts. These require more complex prototyping and durability testing.
Elastic straps for minimalist cardholders need tension testing. A strap that's too loose won't retain cards; too tight, and it stretches permanently within weeks.
Material selection and surface finishing define the wallet's appearance, weight, and cost—each choice carries trade-offs that must be validated in the prototype phase.
The material decision drives everything downstream: machining parameters, finishing options, unit cost, and perceived quality.
Metal options:
Aluminum 6061-T6: Lightweight (2.7 g/cm³), corrosion-resistant, excellent for anodizing. The standard choice for premium metal wallets.
Stainless Steel 304: Heavier (8.0 g/cm³), stronger, more scratch-resistant. Adds perceived durability but increases shipping weight.
Zinc Alloy: Die-castable into complex shapes, lower material cost, but requires coating to prevent oxidation.
Leather options:
Full-grain: Top layer of the hide, retains natural markings, develops a patina. Highest cost.
Top-grain: Sanded and finished, more uniform appearance, slightly lower cost.
PU leather: Synthetic, consistent texture, lowest cost, but less durable and less breathable.
Synthetics:
Carbon fiber: Lightweight, high strength, distinctive weave pattern. Premium positioning.
ABS/Polycarbonate: Injection-moldable, impact-resistant, cost-effective for mass production.
The finish affects both appearance and durability. Specify it precisely in the prototype.
Anodizing (aluminum): Electrochemical process creating a durable, colored oxide layer. Color match requires specific Pantone or RAL codes.
Powder coating: Thick, durable finish applied electrostatically and cured. Common for zinc alloy parts.
PVD plating: Physical vapor deposition creates a thin, hard coating. Used for premium metallic finishes.
Brushed vs. polished: Mechanical finishing determines surface texture. Brushed hides fingerprints; polished looks premium but shows wear.
Leather treatments include edge painting (sealing cut edges), waxing (water resistance), and embossing (texture or logo).
Branding is part of the product, not an afterthought. The prototype should include a sample of the final logo application to validate legibility and durability.
Laser engraving: Precise, permanent, works on metal and leather. Ideal for logos and serial numbers.
Silk screening: Ink applied through a mesh stencil. Suitable for flat surfaces and simple graphics.
Metal badges: Attached separately, adds dimensional branding.
A laser-engraved logo on a prototype reveals potential issues—thin lines that close up, low-contrast finishes, or surface deformation around the engraving—before they become a production problem.
A wallet prototype must pass dimensional, durability, and functional tests that simulate real-world use—these tests validate that the design works, not just that it looks good.
The prototype is measured against its CAD files to verify tolerances. For metal wallets, tolerance of ±0.1mm is standard. For leather, ±0.5mm is acceptable due to material variance.
Card fit testing uses standard CR80 cards. The prototype must accept and retain cards without excessive force or looseness. A card that slides in easily but falls out on inversion fails the retention test.
Professional prototypes undergo simulated use testing:
Slot stretch tests: Cards inserted and removed repeatedly (100–500 cycles) to check slot deformation.
Hinge cycle tests: Flip-style wallets tested for 10,000+ open/close cycles to verify hinge integrity.
Drop tests: Wallet dropped from pocket height (1m) onto hard surfaces to check structural integrity.
These tests approximate 1–2 years of real-world use. A prototype that fails at 2,000 cycles will likely fail in the field within months.
RFID blocking is verified using a standard card reader and a test card operating at the target frequency. With the wallet closed, the card should not be readable at any distance—the blocking range should be 0 cm.
ISO 14443 is the international standard for proximity cards used in contactless payment. Testing against this standard confirms the shielding works as intended.
A professional prototype ships with technical drawings, a bill of materials, and a quality control report—these documents are the blueprint for mass production.
The prototype should include:
2D drawings (DXF/DWG): Dimensioned drawings showing tolerances for every critical feature.
3D files (STEP/IGES): Neutral format files that any factory can open for programming CNC machines or designing molds.
Rendered visuals: Photorealistic images showing the final appearance with specified finishes.
These files are not optional extras. They are the contractual basis for production. Without them, the factory must reverse-engineer the prototype, introducing errors.
A proper BOM lists every component:
Item number and name
Material specification (grade, thickness, finish)
Dimensions
Quantity per unit
Supplier notes (if specific sources are required)
The BOM enables accurate cost estimation and identifies single-source components that could create supply chain risks.
The QC report documents:
Visual inspection results (surface defects, finish consistency, branding legibility)
Dimensional measurements (actual vs. specified tolerances)
Functional test outcomes (card fit, closure mechanism, RFID blocking)
This report becomes the baseline for mass production acceptance. Any deviation from the approved prototype is a production defect unless explicitly approved in writing.
The prototype process moves from concept review through rapid prototyping to revision cycles—a structured workflow that typically spans 7–15 working days for CNC-machined samples.
Before any material is cut, the design undergoes engineering review:
Material selection validation against cost and durability targets
Manufacturing method assessment (CNC machining vs. injection molding vs. stitching)
Cost estimation based on material, labor, and finishing requirements
This review catches design flaws early. A wallet with a 0.5mm wall thickness in aluminum will fail in machining; the engineer flags it before cutting material.
Two rapid prototyping approaches serve different purposes:
| Technique | Best For | Limitations |
|---|---|---|
| SLA/SLS 3D printing | Form-fit testing, visual mockups | Not representative of metal or leather properties |
| CNC machining | Functional metal prototypes | Limited to machinable geometries |
| Hand stitching (leather) | Functional leather prototypes | Labor-intensive, slower |
For metal wallets, CNC machining produces a prototype with identical material properties to the final product. This matters for testing hinge strength, card retention, and surface finish durability. 3D printing is a faster, cheaper check of form and fit, but it cannot validate material behavior.
The typical timeline:
Initial sample: 7–15 working days for CNC-machined metal; longer for stitched leather.
Revision: 3–5 working days per iteration.
Final approval: Sign-off on the "golden sample"—the reference standard for mass production.
Buyers should expect 1–3 revision cycles before approval. Each revision is an opportunity to correct issues found in testing. Skipping revisions to save time is a false economy—production defects cost far more than additional sample rounds.
The prototype process described above is not theoretical. Leading OEM manufacturers operate within the ISO 9001 framework for design and development, which mandates documented procedures for every stage—from design input through verification and validation. This framework ensures traceability: every decision, test result, and revision is recorded.
We follow this structure at Gstar Technology. With 13+ years in the field, our engineering team applies the same workflow to every wallet prototype—whether it is a CNC-machined aluminum RFID blocker or a stitched leather bifold. Our in-house CNC machining capability means metal prototypes are produced with the same precision and material properties as final production units. There are no surprises when the order scales.
Our prototype phase serves a specific purpose: catching manufacturability issues early. With a monthly production capacity exceeding 300,000 units, the transition from sample approval to volume production must be seamless. The prototype is where we validate that a design can be produced at scale without quality degradation or cost overruns.
When you request a prototype from us, you receive the full package: machined or stitched samples, dimensional inspection reports, material certifications, and a detailed BOM. You also receive an honest manufacturing assessment—including instances where we recommend design adjustments to improve manufacturability or reduce cost. That is the value of working with a manufacturer rather than a design studio.
Frequently Asked Questions
A wallet consists of exterior panels, interior card slots and pockets, lining material, closure hardware (snaps, magnets, or elastic), and optional features such as RFID shielding, money clips, or coin compartments. Each component must be specified in the prototype to ensure accurate production.
Spare keys, loose coins, excess receipts, multiple loyalty cards, your Social Security card, and large amounts of cash. These items add bulk, accelerate wear on stitching and materials, and increase the risk of loss if the wallet is stolen.
Phone cases with integrated card slots, adhesive cardholders mounted on phone backs, and digital wallets (Apple Pay, Google Pay). This shift is driving demand for slim, magnetic, attachable wallet prototypes that complement phone-first carry habits.
Bifold, trifold, money clip, cardholder, zip-around, and front-pocket minimalist designs. Each has distinct structural requirements—panel counts, closure mechanisms, and material thickness vary significantly between styles.
Typically 7–15 working days for a CNC-machined metal prototype, plus shipping time. Leather prototypes may take longer due to hand stitching. Revision cycles add 3–5 days each. Plan for 2–3 weeks total including revisions.
Many manufacturers, including us, offer prototype fee waivers or deductions when the order volume reaches a certain threshold. Always clarify this policy before starting the project.
Choose CNC machining if your wallet is metal, requires precise tolerances, or needs functional testing of hinges and card retention. Choose 3D printing if you only need to validate form and fit before committing to expensive tooling. Choose hand-crafted leather prototyping if your design relies on stitching quality and leather grain characteristics.
Choose a manufacturer with in-house prototyping if you want faster iteration cycles and direct feedback on manufacturability. Choose a design studio if you need help with industrial design and don't yet have a manufacturable concept.
The prototype is a contract. Every detail agreed upon in the sample phase becomes the standard for mass production. Treat it with that seriousness.
If you are planning a wallet project and need a prototype that reflects production reality, our engineering team can review your design and provide a manufacturability assessment within 24 hours.
---
ISO 9001:2015 Quality Management Systems — Requirements. International Organization for Standardization. https://www.iso.org/standard/62085.html
ISO/IEC 14443 Identification cards — Contactless integrated circuit cards — Proximity cards. International Organization for Standardization. https://www.iso.org/standard/73598.html
CR80 Card Size Specifications. International Card Manufacturers Association. https://www.icma.com/
Aluminum 6061-T6 Material Properties. ASM International. https://www.asminternational.org/
